Product Overview

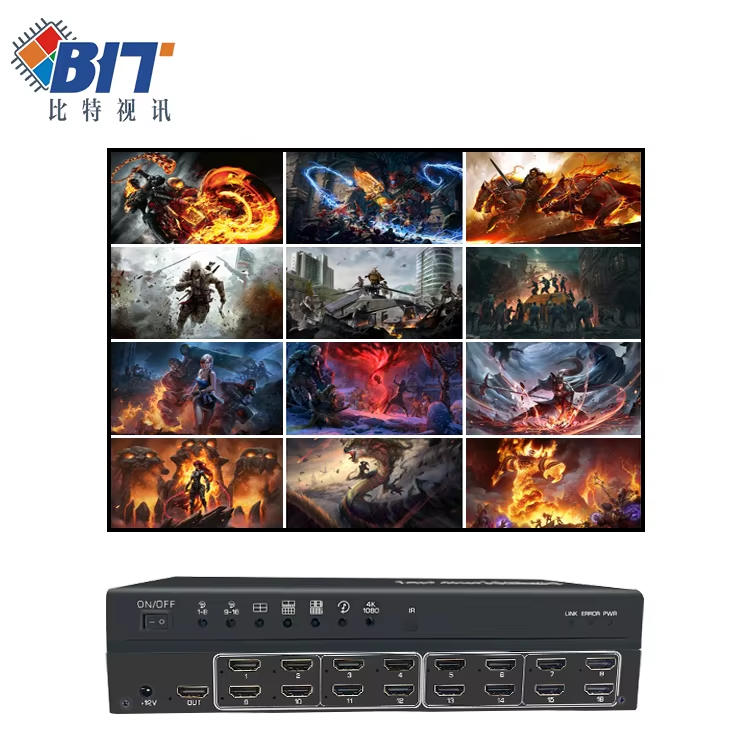

4K 16 in 1 Out Multi-viewer
⇒This is an ultra high-definition sixteen screen splitter, which provides a double-layer or single-layer board solution;
⇒Supports up to 16 HDMI signal inputs with a maximum input resolution of 1920x1080@60Hz,which is backward compatible with low resolution;
⇒Support one channel HDMl / DVl signal output. The output signal automatically recognizes HDMl / DV. The highest output resolution is 3840x2160 @ 30Hz. You can choose the resolution according to different needs, such as 3840x1080 @60Hz,2560x1440 @ 30/60Hz;
⇒16-channel HDMl audio input. When the output is HDMl any one of the 16-channel audio can be selected as the output;
⇒Supports up to 16 in and 1 out,can be combined with multiple split modes, support mode zero delay switching, andmode is automatically saved, users can customize flexibly;
⇒Support buttons, infrared remote control, users can flexibly customize.
⇒Welcome to contact us to consult about the products required by your project!
Product Specifications
| Produduct Name | BIT-MV-4K-1601 |
| Input interface type | 16-way HDMl interface, resalution up ta 1080p, backward campatible with law resalution |
| Audio | Support 16 HDMl audio inputs,1 HDMl audio output {1 out of 16) |
| Output interface | HDMl, support resalution up to 3840x1080 @ 30Hz. Resalution can be customized, such as:3840x1080 @60Hz,2560x1440 30/60Hz |
| Split mode | Fullscreen, quad-split, eight screens(2 large 6 small),16 screens,grid 16 screens 4 large 12 small |
| Control mode | Button, infrared remote control |
| Control Method | Remote Control, Pushbutton, RS232 , Web |
| Power Supply | 12V @ 2A AC-Dc pawer supply |
| Power Consumption | 12W |
| Board size | Double-layer solution (lengthXwidthXheight): 250mmx115mmx45mm |
| Power supply | 12V5A |
| After-sales warranty | 3 yearws warranty |
Features at a Glance
Company Profile
FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.
